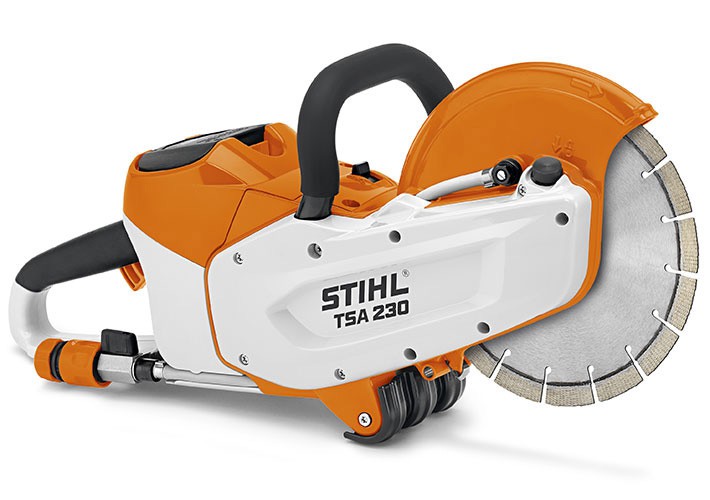

Stihl – TSA 230 Cordless Cut-Off Saw
View Larger
SKU: 48640116600
£473.99 inc VAT/£394.99 ex VAT
TSA230 cordless cut off machine.
(exc. battery and charger)
Supplied with K-ME abrasive wheel for cutting steel.
Any questions? Need assistance? Call our helpline on 01603 616211
Product Details
Standard features
Low-maintenance motor technology - The EC motor with maintenance-free belt drive and enclosed control unit is very durable and low maintenance.
Magnesium guard - The cutting wheel guard is made from a light and durable die cast aluminium.
Ergonomic handle - The ergonomic wrap around handle allows for a more comfortable and precise use in a variety of positions.
Spindle lock mechanism - Cutting wheels can be changed quickly and easily.
STIHL electric motor (EC) - The STIHL electric motor (EC) is extremely energy efficient, lightweight and compact. It runs quietly, generates very low vibrations and does not require servicing.
Hose attachment - Water is supplied to the cutting wheel through the standard water connection with sprinkler system to suppress the dust produced during cutting. It is supplied to the device in such a way so as not to interfere with your work.
Coasting brake - Electronic coasting break brings the blade to a quick stop. No free wheeling.
Technical data
| Battery technology | 36V Lithium-Ion |
| Recommended battery | AP 300 |
| Battery running time AP 200 min 1) | up to 12 |
| Battery running time AP 300 min 1) | up to 18 |
| Battery running time AR 2000 min 1) | up to 75 |
| Battery running time AR 3000 min 1) | up to 95 |
| Maximum cutting depth mm | 70 |
| Cutting wheel mm/in | 230/9 |
| Weight kg 2) | 3.9 |
| Vibration levels left/right m/s² 3) | 3.5/3.5 |
| Sound pressure level dB(A) 4) | 103 |
| Sound power level dB(A) 4) | 114 |
1) Running times are approximate and may vary depending on application
2) Without battery and cutting wheel
3) (K) factor according to Dir. 2006/42/EC = 2m/s²
4) Power factor according to DIR2006/42/EC=2.5(dB(A))
