JCB – Beaver Hydraulic Power Pack & HM25 Breaker

SKU: 929/16400&929/92400

£3,194.99 inc VAT/£2,662.49 ex VAT

FREE delivery to UK mainland
Available for delivery or collect in store

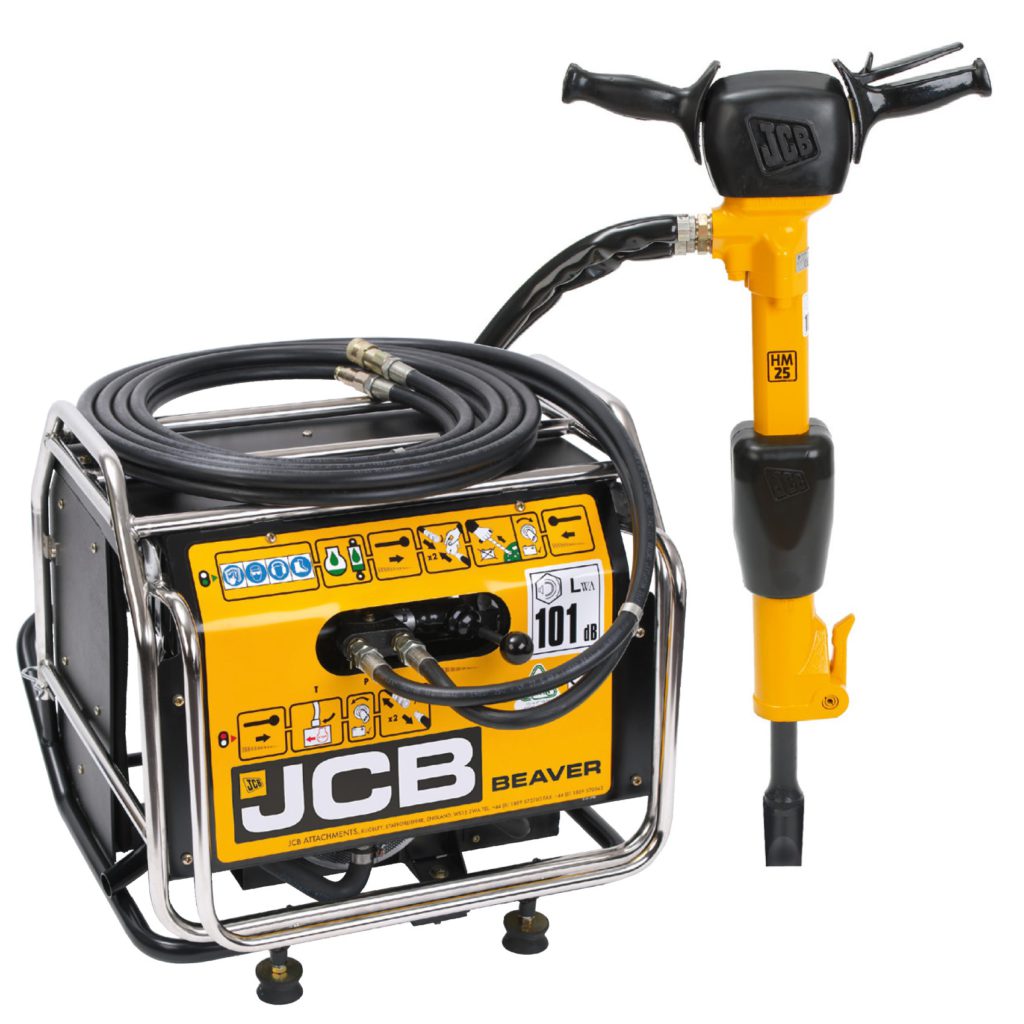

JCB Beaver Hydraulic Power Pack complete with JCB HM25 Breaker and 7m hose.

EHTMA category: C (Green)

Hydraulic flow l/min (gal/min): 0-20 (0-5)

Exclusive Online Price

We also stock a range of steels for use with the HM25 Breaker (No steels are included with this package)

Any questions? Need assistance? Call our helpline on 01603 616211

Product Details

JCB Beaver Hydraulic Power Pack

JCB’s range of hydraulic power packs provide a combination of performance and a compact user-friendly design.  The Beaver Hydraulic Power Pack is a powerful and robust Powerpack yet still lightweight, ideally suited to the rigours of the rental market, this is the most popular Powerpack in the JCB range.

Lift up handle makes portability second to none.

Adjustable hydraulic flow gives precision control of tools.

Power-on-demand system that reduces off load engine speed to idle, giving reduced noise levels, less engine wear and lower fuel consumption.

Swing open frame provides excellent maintenance access to engine and hydraulics.

Unique suction circuit eliminates pulsation damage to cooler.

Integral hose track prevents damage to hoses.

JCB HM25 Breaker

Pound for pound, blow for blow, the JCB range of breakers is the best for demolition and breaking work. They’ll power their way through most jobs.  The HM25 is a popular and powerful high output breaker.  Ideal for use with the Beaver Powerpack.

Vibro damped handles which give amongst the lowest vibration levels of any equivalent breaker.

Sealed hydraulic system resulting in low noise (no exhaust port) and elimination of freezing problems.

Very robust cast steel construction for maximum strength and durability.

High reliability and long service life, thanks to only having two moving parts and constant lubrication.


Detachable 7m length of 13mm bore heavy-duty hose with 1/2" BSP quick release flat faced dripless couplings.


The European Hydraulic Tool Manufacturers Association (EHTMA) has categorised hydraulic power packs and tools in terms of flow rate and working pressure. See "Data Sheet" table below.

EHTMA category

The tool/machine is clearly marked with EHTMA category. It is important that any power source used is in the same category with the tool being used. Power sources and tools with different categories should not be connected, this is both inefficient and dangerous. See "Data Sheet" table below.

Data Sheet

Model name
Model number
Honda GX240
Power kW (hp)
6 / 8
EHTMA category
C (Green)
Hydraulic flow l/min (gal/min)
0-20 (0-5)
Max pressure Bar (psi)
138 (2000)
Weight kg (lb)
66 (145)
Height x width x length mm (in)
615 x 530 x 720 (24.2 x 20.8 x 28.3)
Hydraulic oil capacity l (gal)
5 (1.1)
Fuel capacity l (gal)
6 (1.3)
Main hoses m (ft)
7 (23)
Model name
Model number
Weight kg (lb)
26 (57)
Tool / chisel size hex mm (in)
32 (1.1/4)
EHTMA category
Hydraulic flow l/min (gal/min)
18-22 (4-5)
Pressure range Bar (psi)
90-110 (1305-1595)
Blow frequency blows/min
Vibration (BS8622-5) m/s²
Sound power level dB Lwa
