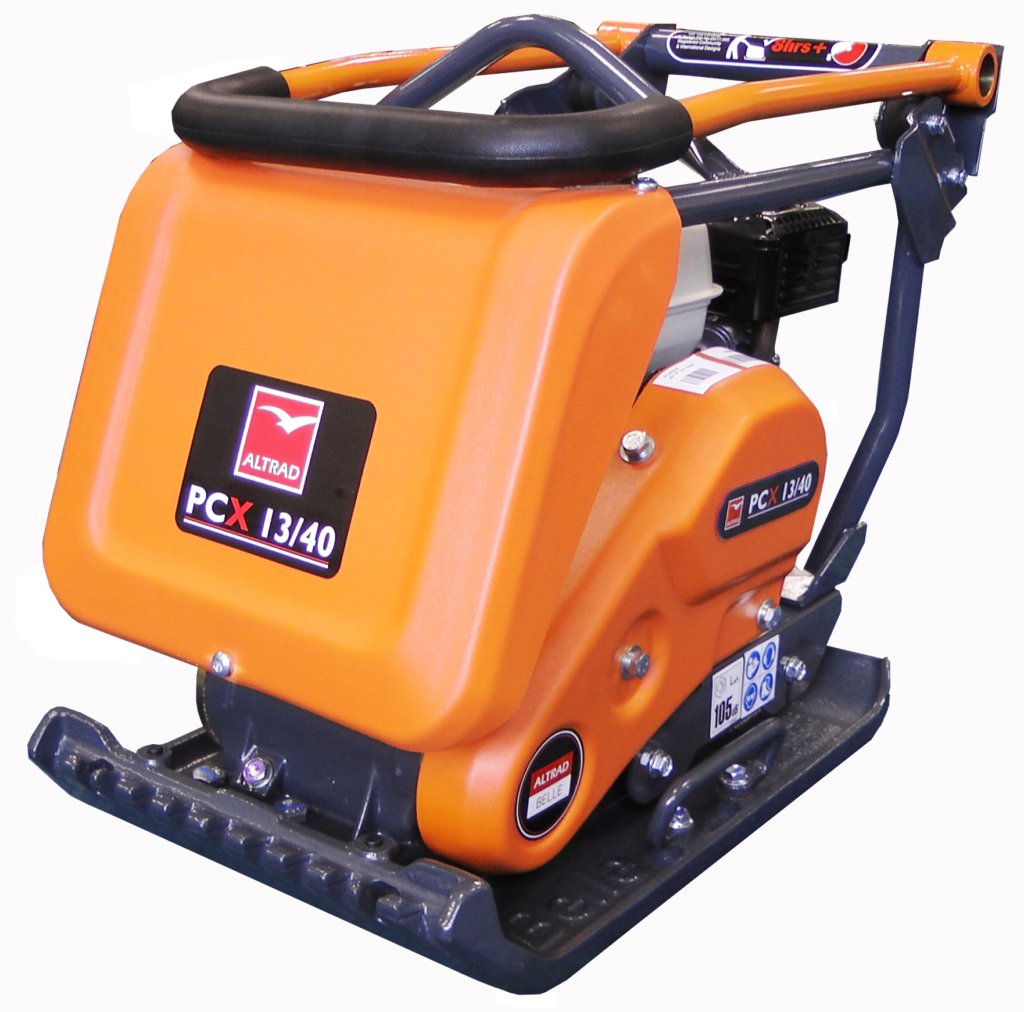

Altrad Belle – PCX 13/40 Honda Engine – Plate Compactor

Product Details

• Advantages

  • • Foldable mounted guide handle offers superior maneuverability and can be lowered to operate under obstacles and close to form work.
    • Reinforced centrifugal clutch ensures longer belt life, and simplified belt adjustment.
    • Lifting points and front lift cage offer easier loading and unloading for operator convenience.
    • Large capacity water tank is built into the protective frame (does not come as standard, this is an additional accessory).
    • Angled holes on spray bar allow complete water coverage over the full width preventing any asphalt pick-up on plate bottom.
    • The spray bar is fully protected from damage, easily positioned,with integral paving pad clamp points.
    • Optional compact wheel kit, easily fitted and removed.
    • Life lubricated vibration bearings.
    • Model Ref: FC4020E
    • Engine: Honda GX160
    • Engine Power: 4.9hp / 3.6kW
    • Plate Size: 400mm W x 606mm L
    • 720mm L x 400mm W x 556mm H
    • Static Pressure: 520kg/m²
    • Centrifugal Force: 13kN
    • Travel Speed: 20 m/min
    • Vibration: 3.20m/sec²
    • Weight: 83.5kg
    • Replaced FC4020E
